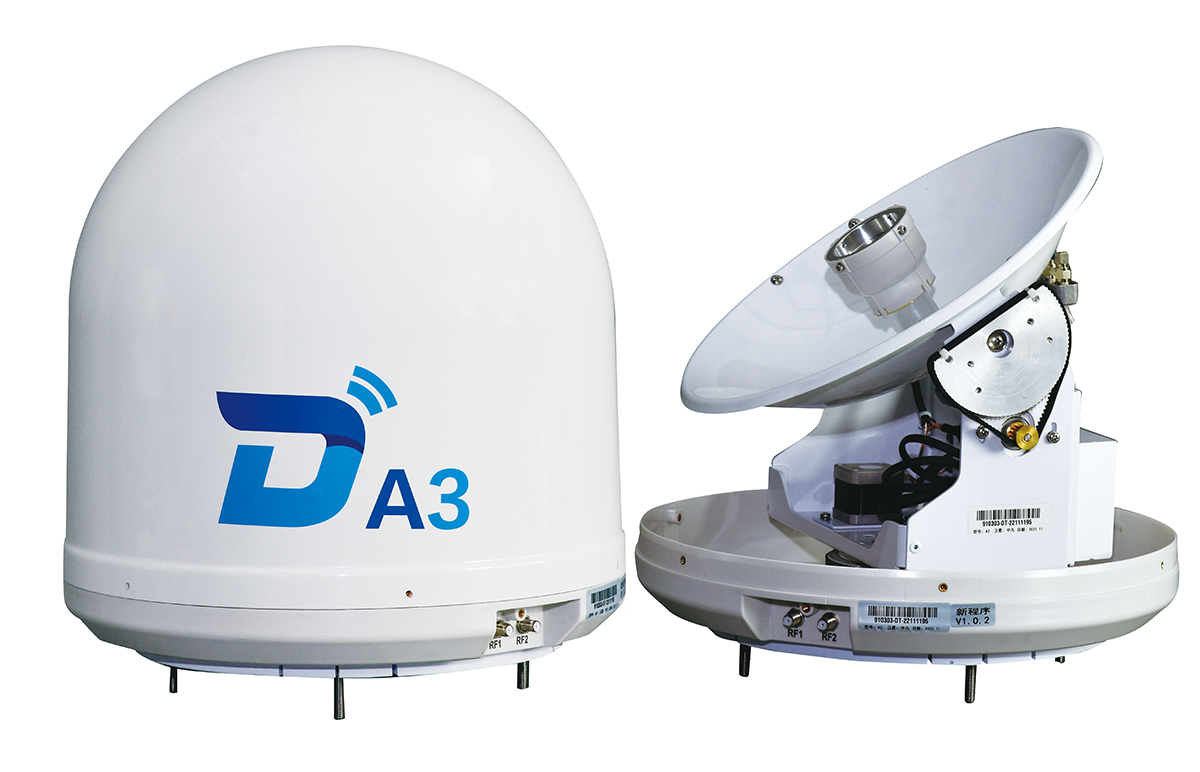

Ditel A3 33cm Ku band marine TV antenna
Ditel A3 33cm Ku band marine TV antenna

Ditel A3 33cm Ku band marine TV antenna

Item No.: A3
Ditel A3 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 33cm (13.0”) reflector.
INQUIRY
Description




Ditel A3 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 33cm (13.0”) reflector.
It is widely used for coastal China land and rivers with satellite EIRP no less than 51 dBW, and it is ideal to receive signal from Chinasat 9. Ditel A3 is suitable for transport ship, yatchs, fishing boat and so on.






• Modern and gentle looking external appearance.
• High waterproof grade and salt spray proof design.
• Simple operation and easy installation.
• Efficient and fast automatic tracking module.
• High performance and high stability.
• Ultra-wide coverage and rich program content.







 Radome dimension(WxH)  38.6*41.2cm (15.2*16.2 inch)
 Reflector diameter  33cm (13.0 inch)
 Weight  5.0kg (11 lbs)
 Radom colour  White
 Radom material  ASA
 Environmental humidity                                  0-95%
 Operating temp. range   -20~60℃
 Platform  2-axis stabilized, 2-axis tracking
 AZ range/ tracking  rate   0°～680°/ ±20°@4S
 EL range/ tracking  rate   10°~90°/ ±20°@4S
 Initial lock                ≤1Min
 Input frequency   11700~12900MHz
 RX gain  31.6dBi
 Power input   AC 110~240V
 Min. EIRP  51dBW
 Polarization  Circular polarization
 Antenna type  Ring focus rear feed antenna
