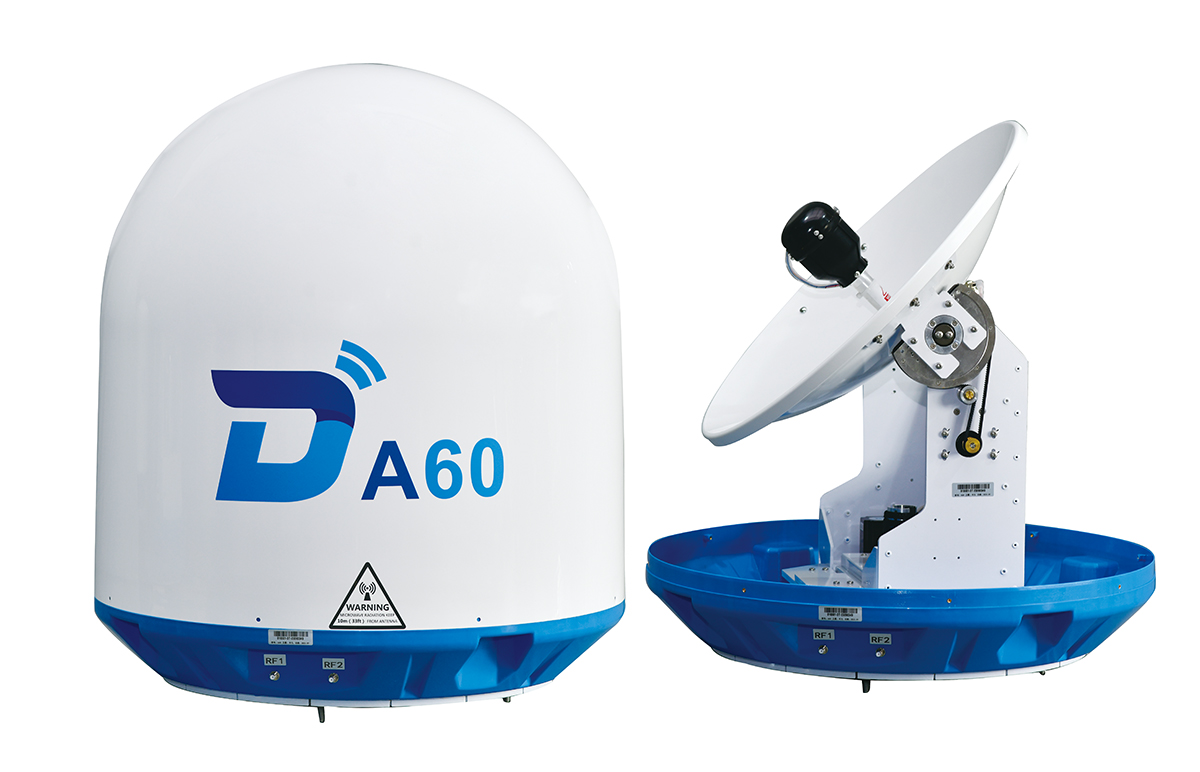

Ditel A60 63cm Ku band marine TV antenna
Ditel A60 63cm Ku band marine TV antenna

Ditel A60 63cm Ku band marine TV antenna

Item No.: A60
Ditel A60 is a marine satellite TV antenna, which has good satellite signal reception capability with a 63cm (24.80”) reflector.
INQUIRY
Description



Ditel A60 is a marine satellite TV antenna, which has good satellite signal reception capability with a 63cm (24.80”) reflector.
It is widely used in China's coastal land and rivers, Xisha, most of South Korea, Taiwan and other regions with satellite EIRP more than 47 dBW, and it is ideal to receive signal from Chinasat 9.






• Modern and gentle looking external appearance.
• Simple operation and easy installation.
• Efficient and fast automatic tracking module.
• High performance and high stability.
• High efficiency and sensitive tracking.
• Ultra high definition viewing.







 Radome dimension(WxH)  70*75.8cm (27.5*29.8 inch)
 Reflector diameter  63cm (24.8 inch)
 Weight  21.5kg (47.3 lbs)
 Radom colour  White/Blue
 Radom material  ASA/ABS
 Environmental humidity                                  0-95%
 Operating temp. range   -20~70℃
 Platform  2-axis stabilized, 2-axis tracking
 AZ range/ tracking  rate   0°～680°/ ±8°@15S
 EL range/ tracking  rate   0°~95°/ ±20°@4S
 Initial lock                ≤1Min
 Input frequency   10700~13400MHz
 RX gain  36.2dBi
 Power input   AC 110~240V
 Min. EIRP  47dBW
 Polarization  Circular polarization
 Antenna type  Ring focus rear feed antenna
