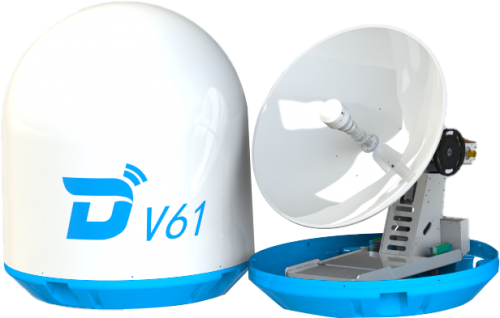

Ditel V61 65cm Ku band 3-axis stabilized maritime VSAT antenna

Ditel V61 65cm Ku band 3-axis stabilized maritime VSAT antenna

Featuring a compact size and lightweight design, Ditel V61 is a 65cm Ku-band maritime VSAT antenna system ideal for smaller vessels with space constraints.
INQUIRY
Description






Featuring a compact size and lightweight design, Ditel V61 is a 65cm Ku-band maritime VSAT antenna system ideal for smaller vessels with space constraints.
With its 3-axis stabilized platform and 5 patent technology, V61 offers superior tracking performance to users. The 5 patents make Ditel V61 performs super high tracking effiency with 65cm dish while other antennas need 90cm dish at least. 3-axis is preferred in the vicinity of the equator.






• SkyFocusTM super high gain antenna. Ring focus antenna providing extra high communication performance

• WatchmanTM double  inertial guidance project. High tracking accuracy and stability by double inertial guidance project and Ditel's distinctive Algorithm patent

• Tri-DoorTM smart failure testing. Checking  peripheral equipment automatically,preventing system malfunction

• SingfingerTM one-click operating system. Innovative, simplified & easy operation interface, ACU status viewing and parameters input with single button

• LightenLifeTM built-in WIFI interface. Remote processing system on mobile terminal are available.

• 3-axis stabilized, 4-axis tracking.







Radome dimension(WxH) 75*85cm (29.78*33.46 inch)
Reflector diameter 65cm (25.59 inch )
Weight 45kg (99 lbs)
Operating temp. range -20~60℃
Platform 3-axis stabilized , 4-axis tracking
AZ range/ tracking rate Unlimited/ ±8°@15S
EL range/ tracking rate -10° ~ 105°/ ±20°@5S
Roll range/ tracking rate ±30°/ ±20°@5S
Skew range/ tracking rate ±167.5°/ ±20°@5S
Initial lock ≤1.5Min
Re-lock after break lock time Break lock＜1Min; Re-lock＜1Min
Break lock≥1Min; Re-lock＜2Min
TX frequency 13.75~14.5GHz
TX gain 37.8dBi (14.25GHz)
RX frequency 10.7~12.75GHz (Ku-band)
RX gain 36.7dBi (12.5Ghz)
G/T 14.2dB/K (Clear sky, 30° Elevation)
Power input AC 100～240V
Min. EIRP 46dBW
Polarization Linear polarization
Cross-POL isolation ＞30dB
Antenna type Ring focus rear feed antenna
LNB KU band LNB
