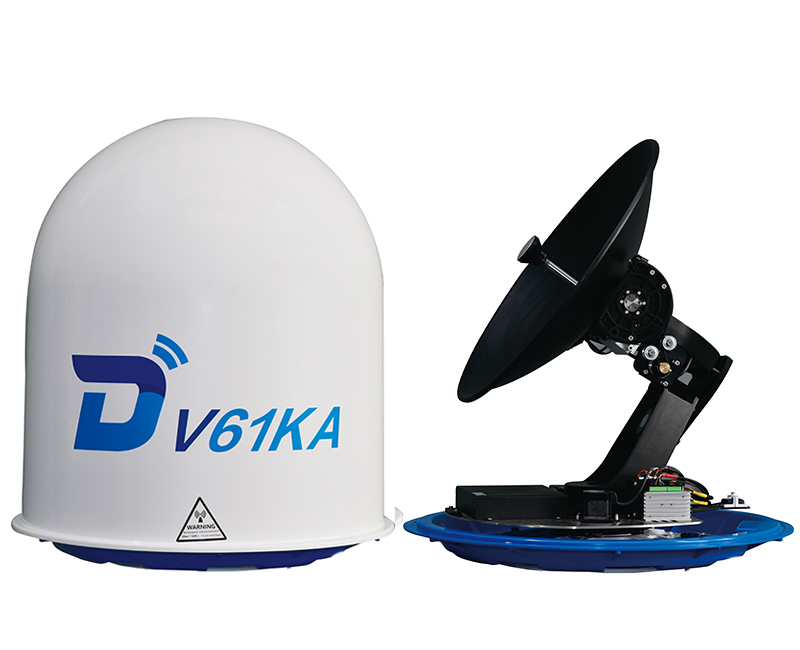

Ditel V61KA 65cm KA band 3-axis stabilized maritime VSAT antenna
Ditel V61KA 65cm KA band 3-axis stabilized maritime VSAT antenna

Ditel V61KA 65cm KA band 3-axis stabilized maritime VSAT antenna

A compact size & lightweight design, Ditel V61KA maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels. It delivers superior tracking performance, enabling users to enjoy remote co
INQUIRY
Description




A compact size & lightweight design, Ditel V61KA maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels. It delivers superior tracking performance, enabling users to enjoy remote control via PC & mobile devices, web surfing, broadband connectivity, video monitoring, video conferencing, VoIP & other network applications during dynamic sea conditions.






• Low Signals Loss   Compatible with a variety of modems built into the radome, the entire RF link is less than 1 meter, signal transmission loss is significantly reduced.

• Modem Compatibility   Compatible with a variety of modems, including iDirect, UHP, Newtec, Gilat, Comtech, Hughes, Anovo, Spacebridge and many more.

• Open platform compatibility  The ACU integrates the ABS function and supports the iDirect OpenAMIP protocol for auto beam switching.

• Stable and reliable tracking  Adoption of reflector surface tracking algorithm, based on three-dimensional relationships of signal level, azimuth angle, and elevation angle, ensuring stable and reliable tracking.

•Easy construction and installation  Both 1-cable and 3-cable solutions available for connecting the antenna to indoor units, ensuring convenient installation and simplified wiring.

•Advanced system control  The ACU has built-in Wi-Fi, allowing wireless device users to directly connect. Advanced system control and antenna status monitoring can be achieved using an ACU web interface.






Physical  Parameters
Radome dimension(WxH) 93.6*8.81.85cm (36.85*32.22 inch)
Reflector diameter 65cm (25.59 inch )
Weight 43.5kg (95 lbs)
Radome color White/blue
Radome materials ASA+ABS/ABS+PC
Antenna weight Standard Config: 43.5kg (95lbs)
Environmental humidity 0~95 %
Operating temp. range -25~60℃
Waterproofing grade IP56
Satellite band KA-Band
Antenna type Ring focus rear feed antenna
ACU size 350*230*50.98mm（Without bracket）
ACU weight 2.9kg
Tracking  Parameters
Stabilization forms 3-axis stabilized: Azimuth, Elevation, Roll
Tracking forms 3-axis tracking: Azimuth, Elevation, Roll
Azimuth range Unlimited
Elevation range -20° ~ 120°
Roll range ±38°
Carrier tracking speed Elevation: ±20° @4S
Roll: ±25° @5S
Azimuth: ±90° @36S
Initial lock ≤1Min
Re-lock after break lock time Break lock＜30S; Re-lock＜3 S
Tracking brake system Azimuth, Elevation, Roll
Communication Parameters
TX frequency 29.0~30.0GHz (Ka-Band)
TX gain ≥44.3dBi (29.5GHz)
RX frequency 17.8~20.2GHz (Ka-band)
RX gain ≥40.5dBi (19.4GHz)
G/T 15.9dB/K (Clear sky, 30° Elevation)
Power input AC:100～240V(50 HZ);DC:15-36V
Power output DC:24V
Min. EIRP 47dBW
Polarization Circular polarization
Left/ Right  (Auto switching)
Static power (Without BUC) Average: ≤ 15W;
Peak value: ≤ 40W
Dynamic power (Without BUC) Average: ≤ 25W;
Peak value: ≤ 50W
Transceiver power 3W/4W
Axial ratio <1.5dB
